Keyboard and Menu Programming allows for simple FT-50R operation.-MARS/CAP Modifiable with proof of permits. FT-50 Game Mode The FT-50R includes an interesting 'game' thats programmed into it. Heres how it works: Power up the radio while holding down the MR key. The display will show GAME on the left side, and Spd 1 on the right. View and Download Yaesu FT-50 instruction manual online. Dual-Band Amateur Hand-Held Transceiver with Digital Voice Recorder Option. FT-50 transceiver pdf manual download. Also for: Ft-50r, Ft-5or.
- Yaesu Ft-50r Programming Software
- Yaesu Ft 50r Manual Download
- Yaesu Ft 50r Programming Software Free
- Ft 50r Battery
I inherited an old but working FT-50 and cannot find programming software for it. I have the cable but no luck finding free software. It's a nice little HT I would like to donate to a new ham but.
| QSL.NET / Jonathan Adair / Ham Radio / Yaesu FT-50R |
Yaesu FT-60R Step-by-Step Programming Guide Noji Ratzlaff Set the radio to communicate with a repeater at 147.080+ MHz, 77.0 Hz 0. Turn on the radio and make sure it’s unlocked 1. Press V/M once or twice until the display reads MEMORY, then once more 2. Set the frequency 1 - 4 - 7 - 0 - 8 - 0 3. If the + sign appears at the top, skip to step 7 4. FT-50 Radio Programming Software The ADMS-FT50 software helps you program memory channel and menu setting details of this 'hunk' of a radio. One of the original radio from the 1990s that had the ability to be 'cloned' which let it be programmed from the computer, the FT-50 remains a great radio today.
Here you can find general information about the radio, my review of the radio, power-on functions, factory settings menu, bandplans, and links to more information.
General Information
My Review
Power-On Functions
There are a number of different functions shown below that involve holding one or more buttons down when powering on the radio. The Expanded Receive function sometimes works the same as Reset All function if you are already in Expanded Receive mode. To get into the Factory Settings menu, you must first set the receiver to VFO mode, set VFO A near 144, and set VFO B near 440.
| Press | Function |
| Knob & PTT | Clone Mode |
| Lamp | Display Test |
| Lamp & PTT | Toggles Memory-Only Mode |
| Knob & Mon | Reset All (After Pressing F) |
| Knob & Lamp | Expanded Receive |
| Knob & PTT & Lamp | Factory Settings Menu |
| MR | Game Mode |
Factory Settings
When you get into the Factory Settings menu, you can use the knob to select the settings shown in the table below. Some of the settings can be changed by simply twirling the knob, but some of them are set by sampling the currently received signal. Beware of changing those settings, as it can be damn hard to get back to the factory setting.
There is a BAND setting, which selects the frequency band plan as shown below, but you will not be able to modify it unless you perform the Freeband Modification. The remaining settings are split into VHF and UHF sets, which you can toggle between with the VFO key on the keypad. The power levels (HIPO, L3PO, L2PO, L1PO) are changed with the knob and should effect the RF output power of the transmitter. There is a High Power Modification that consists of cranking up the HIPO setting and making sure to feed the radio with ample 12 or 13.8 volt power.
The S1LV and S9LV settings appear to be the corresponding signal levels for the signal strength meter. I believe that you could change these levels to make the meter cover a wider range. The HISQ, THSQ and TISQ appear to affect the squelch, but I have not delved into them enough to be certain of their function.
| Item | Value | Method and Range |
| BAND | A3-- | knob (Free,F1,A1,B1,C1,D1,H1) |
| HSSQ | 0 | knob 0-255 |
| THSQ | 121 | signal |
| TISQ | 74 | signal |
| S1LV | 118 | signal |
| S9LV | 208 | signal |
| HIPO | 133 | knob 0-255 |
| L3PO | 93 | knob 0-255 |
| L2PO | 52 | knob 0-255 |
| L1PO | 15 | knob 0-255 |
| uHSSQ | 0 | knob 0-255 |
| uTHSQ | 119 | signal |
| uTISQ | 72 | signal |
| uS1LV | 133 | signal |
| uS9LV | 223 | signal |
| uHIPO | 109 | knob 0-255 |
| uL3PO | 76 | knob 0-255 |
| uL2PO | 43 | knob 0-255 |
| uL1PO | 13 | knob 0-255 |
Frequency Band Plans
With the Freeband Modification done, you can pick from all thirteen frequency band plans. Without it, you can pick the A1 or A3 band plans. Straight out of the box, the radio should be in the A3 band plan.
Except for the special 'Free' band plan, every band plan has a basic ham-band only version (A1, B1, etc.) and an expanded receive version (A3, B3, etc.).
In the 'Free' band plan, the tuner is allowed to try to tune lower than possible. When this happens, the frequency display blinks. My tuner won't handle receive frequencies below about 72 MHz and transmit frequencies below about 119.56 MHz.
One important note about the band plan ranges I've shown below is that I checked these with the 'MARS/CAP' modification done. Without this modification, I suspect that the transmit range would always be that of the basic band plan without expanded receive set.
Yaesu Ft-50r Programming Software
| ||||||||||||||||||||
|
|
| ||||||||||||||||||
|
|
| ||||||||||||||||||
|
|
| ||||||||||||||||||
|
|
| ||||||||||||||||||
Links to More Information
The Yaesu FT-50R Information page has pictures, modifications, and lots of information culled from the rec.radio.amateur.equipment newsgroup.
The Yaesu company site has specifications and information about the FT-50R and other ham gear as well as information about their Vertex VX-10 commercial dual-bander, which is very similar to the FT-50R.
Yaesu Ft 50r Manual Download

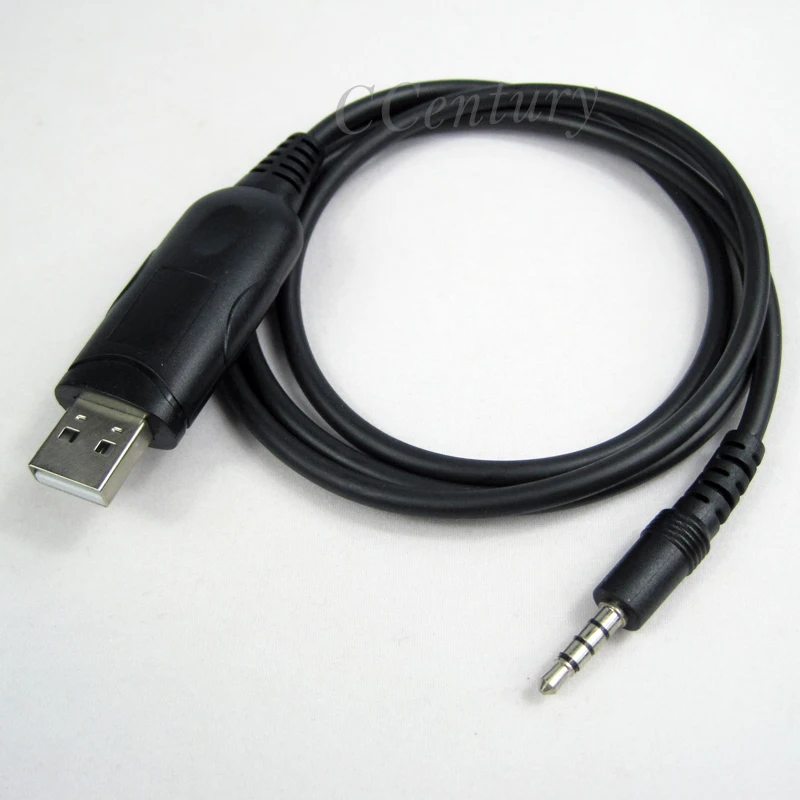

Really old programming software may require Windows XP and/or Windows 7 32-bit in order to function properly. Yaesu FT-10 FT-10R FT-11 FT-11R FT-250 FT-40 FT-40R FT-41 FT-41R FT-50 FT-50R FT-51 FT-51R FT-60 FT-60R FTH-2010 FTH-2070 FTH-7010 VX-1 VX-10 VX-110 VX-130 VX-131 VX-132 VX-14. The ADMS-FT50 software allows you to program memory channels and menu settings of the radio. ADMS-FT50 works with authentic versions of this radio worldwide including the FT-50R and FT-50E. Click here for more Information. ADMS-FT50-USB Programming Kit. ADMS-FT50 Programming Software and USB-57A. [Yaesu] FT-50R Programming software question, Rene Campbell FT-50R Programming software question, Alek Petkovic; Previous by Date.
Compact Heavy-Duty VHF/UHF Dualband Handheld The FT-50R is manufactured to rigid commercial grade standards, and is the only amateur dual band HT to achieve a MIL-STD 810 rating. Plus the FT-50R is the first dual band HT to include Digital Coded Squelch (DCS), super loud audio, and the “widest” band receive allowable. In fact, the FT-50R is the one of the smallest 5-Watt dual band with wide band receive. The FT-50R is rugged, reasonably priced, simple to operate, and has all the features you want!
Yaesu Ft 50r Programming Software Free
Use the left and right arrows to scroll through all models. YAESU - The Radio The Yaesu brand is well known among ham radio aficionados and is synonymous with premium quality ham radios. From stationary multi-feature communications equipment to portable devices, we have led the ham radio market for nearly half a century. Communicating through radio waves with people all over the world is what ham radio is all about and what keeps many people hooked. Finding that distant but recognizable signal buried in a sea of noise is the type of enjoyment of discovery unattainable from sending an instant e-mail overseas through the Internet.
Ft 50r Battery
Since successfully developing the highly stable SSB generator and balanced modulator back in 1957, we have been a part of HF SSB (Single Side Band) history. We also subsequently developed independently the ultra narrow IF crystal filter, a breakthrough that paved the way to commercialization of SSB communications. These breakthroughs in basic research not only demonstrated our technological prowess to the world, but was also instrumental in diffusing the concept of SSB communications in the HF band, the current standard, throughout the world. Remo File Eraser Keygen Torrent. The YAESU brand has consistently represented the best in communications equipment to the world's Top DX'ers for almost half a century. COPYRIGHT©2003-2018 Yaesu USA.
